Product Details

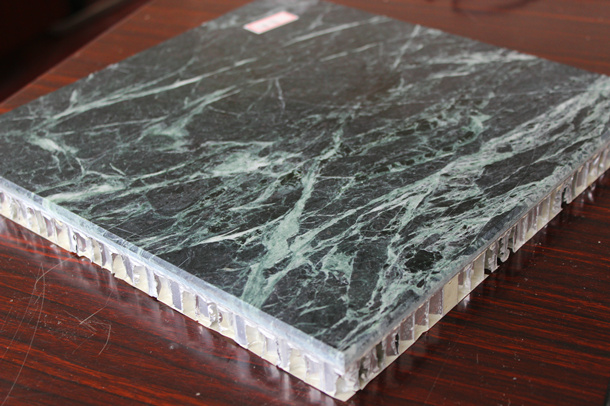

Stone Al-honeycomb panel YG-8026
part：
Stone Al-honeycomb panel YG-8026
Foil Model： 3003/5025
Thickness of Foil： 0.04-0.08mm
Materrial Thickness： 10mm/15mm/25mm
Cell Size： 0.7-34.6mm
Sides of Plate： 0.4-2.0mm
Denslty： 20-111kg/㎡
Prix du marché： ￥0.00
Product Details
Product Description

1. Grade: 3003,5052,1101/0.8-2mm/5-100mm

2. Brand: ROGOMETAL
3. Surface reatment: Anodized,Brushed,Mirror,PE Coated,Paint
4. Certification: ISO, SGS, TUV, BS6853

Product Name
Aluminum honeycomb panel/sandwich honeycomb panel
Material
Aluminum
Alloy
3003/5052/1101
Foil thickness
0.04-0.08
AL plate sheet
0.5-2.0
Total thickness
Hot sale thicknes 10mm,15mm,20mm,25mm
L*W
2400mm/2800mm*1200mm/1250mm/1500mm/
Used
building industry, indoor and out door, Household, Commercial

Main Features

1) Simple structure in linear type ,easy in installation and maintation.

2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

3) High pressure double crank to control the die opening and closing.

4) Running in a high automatization and intellectualization,no pollution

5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine .

Products Show
Technical data

ASTM
Unit
10mm
15mm
20mm
Unit theory weight

kg/m2
5.4
5.6
5.75
Tensile strength
E8
N/mm2
806
598
455
Endurance capacity
E8
N/mm2
531
405
279
Elongation
E8
%
1.2
1.4
1.7
Bending rigidity
C393
X106N.mm2
8.03
15.4
38.44
Bend elasticity rate

N/mm2
50000
40600
38.44
Temeprature total extension coefficient
D696
X10-6N/℃
0.24
0.24
0.24
Heat conduction rate
D976
Kcal/mhr℃
0.23
0.19
0.15
Heat transform temperature
D648
℃
200
200
200
Bonding strength
297

12
12
12
Surtace smoothness
1mm/M.Maximum deviation:1mm/M
Flame retardabt property
Nonflammable,match relevant fire resistance standard
Soundproof function
Be decided by layout of printed sheet installation angle,0-3dB

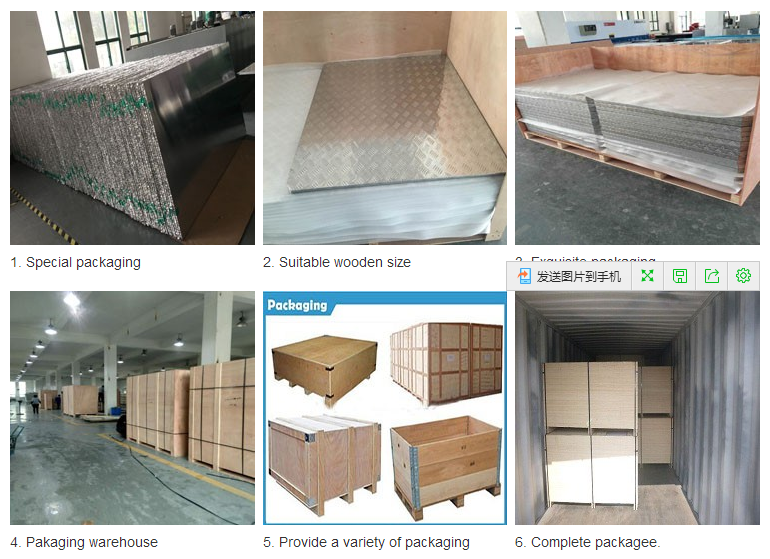

Packing & Delivery

Packing Details : Packing, The minunum 50 piece of wooden cases
Delivery Details : Depends on the time you place the order, Usually no more than15 days.


Our Certifications

Fireproof test

Certificate of quality                             Formaldehyde test

Compression test

Our Consumer
Related Products

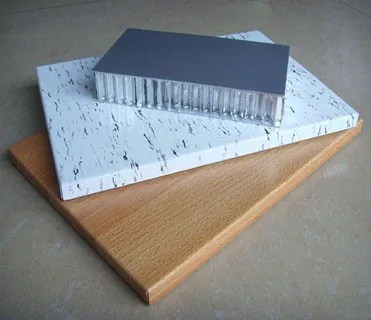

PE&PVDF Aluminum honeycomb panel

Light weight, Anti-corrosion, the color is bright, the most widely used products.

Aluminum honeycomb panel (sandwich panel)

No pollution, sound insulation, anti-corrosion. Suitable for use in indoor construction, clean room, etc.

Marble/stone aluminum honeycomb panel

Save resoures, low cost and high use value. Suitable for indoor and out door decoration and the floor.

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.


Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
